Ball Bearing With Flangle
Back
Detailed Information
|

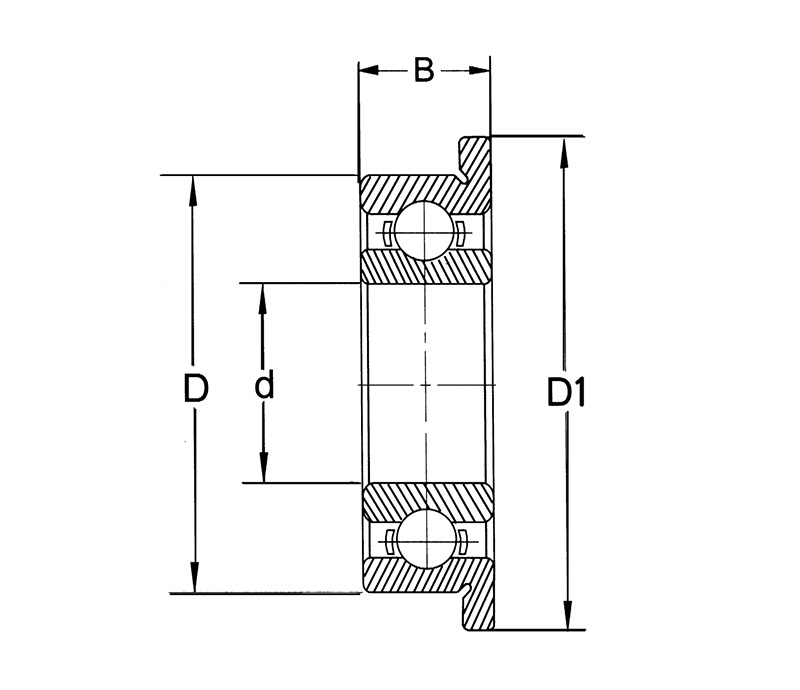

Bearing no.
|
Inside diameter(mm)
|
Outside diameter(mm)
|
outer diameter offlangle
|
width (mm)
|
|
d
|
D
|
D1
|
B
|
|
F673ZZ
|
3
|
6
|
7.2
|
2.5
|
|
F683ZZ
|
3
|
7
|
8.1
|
3
|
|
F693ZZ
|
3
|
8
|
9.5
|
|
|
F603ZZ
|
3
|
9
|
11
|
5
|
|
F623ZZ
|
3
|
10
|
12
|
4
|
|
F674ZZ
|
4
|
7
|
8.2
|
2.5
|
|
F694ZZ
|
4
|
11
|
13
|
4
|
|
F684zz
|
4
|
9
|
10.2
|
4
|
|
F624ZZ
|
4
|
13
|
15
|
5
|
|
F634ZZ
|
4
|
16
|
18
|
5
|
|
F675ZZ
|
5
|
8
|
9.2
|
2.5
|
|
F685ZZ
|
5
|
11
|
13
|
3
|
|
F695ZZ
|
5
|
13
|
15
|
4
|
|
F605ZZ
|
5
|
14
|
16
|
5
|
|
F625ZZ
|
5
|
16
|
18
|
5
|
|
F635ZZ
|
5
|
19
|
22
|
6
|
|
F676ZZ
|
6
|
10
|
11
|
3
|
|
F686ZZ
|
6
|
13
|
15
|
5
|
|
F696ZZ
|
6
|
15
|
17
|
5
|
|
F606ZZ
|
6
|
17
|
19
|
6
|
|
F626ZZ
|
6
|
19
|
22
|
6
|
|
F636ZZ
|
6
|
22
|
25
|
7
|
|
F677ZZ
|
7
|
11
|
12
|
2.5
|
|
F687ZZ
|
7
|
14
|
16
|
3.5
|
|
F697ZZ
|
7
|
17
|
19
|
5
|
|
F607ZZ
|
7
|
19
|
22
|
6
|
|
F627ZZ
|
7
|
22
|
25
|
7
|
|
F637ZZ
|
7
|
26
|
29
|
9
|
|
F678ZZ
|
8
|
12
|
13
|
3.5
|
|
F688ZZ
|
8
|
16
|
18
|
4
|
|
F698ZZ
|
8
|
19
|
22
|
6
|
|
F608ZZ
|
8
|
22
|
25
|
7
|
